Information details

2 z式提升机

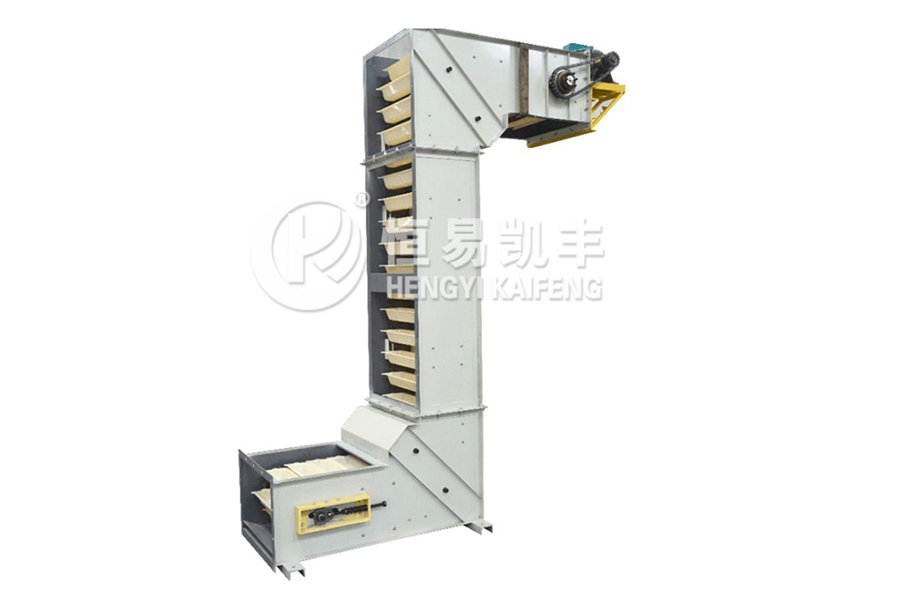

Z-type hoist

It is named after the letter Z according to the different positions of the inlet and outlet; It can meet the requirements of multi-point unloading at any position, and will not damage the material structure in the transportation, and the feeding is uniform and convenient. At present, it is mainly used in activated carbon, chemical industry, plastics, grain, food, hardware and other industries

参数 parameter 型号 Model			ZD-3L	ZD-6L	ZD-8L	ZD-10L	ZD-15L	ZD-20L	ZD-25L
输送量 Transportation volume	100%	m³/h	6	15	18	22	30	45	56
输送量 Transportation volume	75%	m³/h	4.5	11	14	16.5	22.5	33.5	42
料斗（mm） Hopper	斗容	L	3	6	6	8	15	20	25
	斗宽	mm	370	470	670	870	500	560	690
	斗距	mm	228.6				330
链条 chain	条数	-	2
提升高度 Max.lifting height		m	≤45
水平输送距离 Maximum horizontal conveying distance		m	≤100
总功率 Total power		Kw	0.72-22
